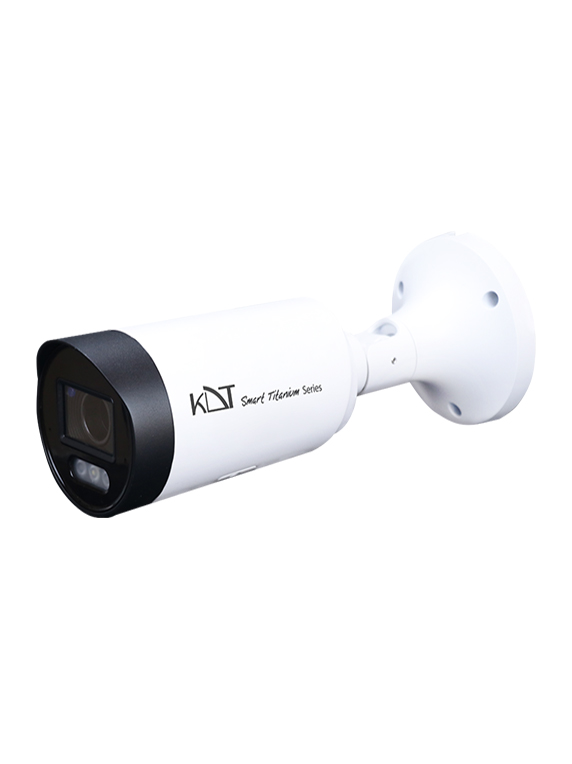

KI-B۵۵ST۶۰A-i۷۰TSLM
| 6MP , Strobe Light , Motorized Lens 6MP (Sony-Japan) Progressive scan Cmos Sensor (1/2.8”) 2.7~13.5 mm @F1.6, Motorized Fast Auto Focus Lens H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG 30fps@ 6MP(3200*1800), 30fps@ 5MP, 30fps@ 4MP, 90fps@ 2MP Dual-Core ARM Cortex-A7@900 MHz PoE Support Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) IP67, IK10, 6KV Surge Protection Internal Mic, Audio Out, Audio in Alarm In, Alarm Out |
توضیحات
قابلیت های هوشمند:
|
|
سایر برتری ها :
|
شرایط گارانتی :
|
| Camera | |
| Image Sensor | 6MP (Sony-Japan) Progressive scan CMOS Sensor (1/2.8″) |
| CPU | Dual-Core ARM Cortex-A7@900 MHz |
| Lens | 2.7-13.5 mm @ F1.6, Motorized Fast Auto Focus Lens |
| Resolution | 3200*1800 (6MP) |
| Available IR Range | 70*80 m Smart IR SMD (Osram-Germany) Technology Smart White light Technology |
| D/N Filter | IR cut filter with auto switch |
| Min Illumination | Color: 0.001 Lux(AGC on) – B/W: 0 Lux(IR on) |
| Angle of View | H-FOV: 112°~36°, V-FOV: 58°~20°, D-FOV: 120°~39° |
| Night Vision | Color / IR |
| Picture Adjust | |
| Picture Function | 120dB WDR/DWDR, 2D/3D DNR, BLC, HLC, ROI, Defog |
| Image Stabilization | Yes (EIS) |
| Shutter Speed | Manual (1/3 ~ 1/100.000), Auto |
| Image Parameter Control | Off, On, Timing (Adjust 0 ~ 255) |
| D/N Control | Timing, Auto, Color on, Color off |
| S/N | > 56dB |
| Image Parameter | Saturation, Brightness, Contrast, Sharpness, Hue |
| Video / Audio | |
| Video Compression | H.264+(Ultra H.264), H.265+ (Ultra H.265), MJPEG |
| Audio Compression | G.711A, G.711U |
| Frame Rate (60Hz) | 30fps@ 6MP(3200*1800), 30fps@ 4MP, 90fps@ 2MP |
| Transmission Stream | Triple Stream (Video Bit Rate:11 Kbps~16 Mbps) |
| Network | |
| Protocols | TCP/IP(V4, V6), ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, SNMP (V1, V2, V3), UDP, NAT, Multicast, RTMP |
| Compatibility | Onvif Ver2.6, Profile S, G, T, CGI, SDK, API |
| Streaming Method | Unicast, Multicast |
| Web Viewer | IE, Edge, Firefox, Chrome |
| Function | |
| Recording | FTP, NVR, CMS, VMS, NAS, SD Card, ANR |
| Record Type | Manual, Motion Detection, Smart Detection, Schedule |
| Alarm Triggers | All Intelligent Function |
| Event Action | Email, PTZ, Snapshot, Recording, Buzzer, Pop up, Show Message, Smart Light |
| Event | Smart Motion Detection, Video Shelter |
| Intelligent Function | 13 Smart Functions, Line Crossing, Area Intrusion, Region Entrance, Region Exiting, Fast Moving, Loitering Detection, Blurred Detection, Scene Change Detection, Audio exception Detection, Smart People Counting, Face Detection, Smart People Counting, Crowd Density Monitoring, Heat Map |
| Interface | |
| Network | 1 RJ45 (10M / 100M) Ethernet Port |
| External Audio | Audio Out, Audio In |
| Internal Audio | Internal Mic |
| Alarm | Alarm In, Alarm Out |
| CVBS | N/A |
| Power | PoE LAN, DC In |
| Reset Button | Yes (Optional) |
| Memory Slot | Yes – Micro SD/SDHC/SDXC Slot (256 Gb Max) (ANR Support) |
| General | |
| Protection Rating | IP67, IK10, 6KV Surge Protection |
| Power Supply | DC12V ± 10% |
| POE Supply | IEEE802.3af – Max 13 Watt |
| Web Language | English, Persian |
| Dimension | 265*100 mm |
| Weight | 1.4 kg |
| Operation Humidity | Humidity 95% or less (non-condensing) |
| Operation Temp | -30°C ~ +60°C |
| Guarantee | |
| Product Guarantee | 5 Years Gold Guarantee |
| MTBF | 100K hrs min. MIL-HDBK-217F (25°) |
| Certificates | EN, CN, FCC, CFR |
